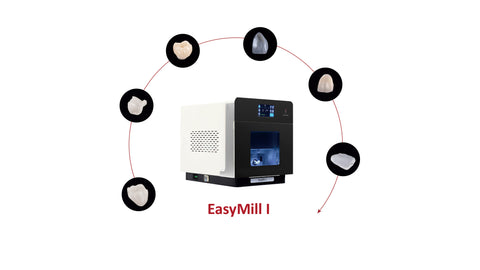

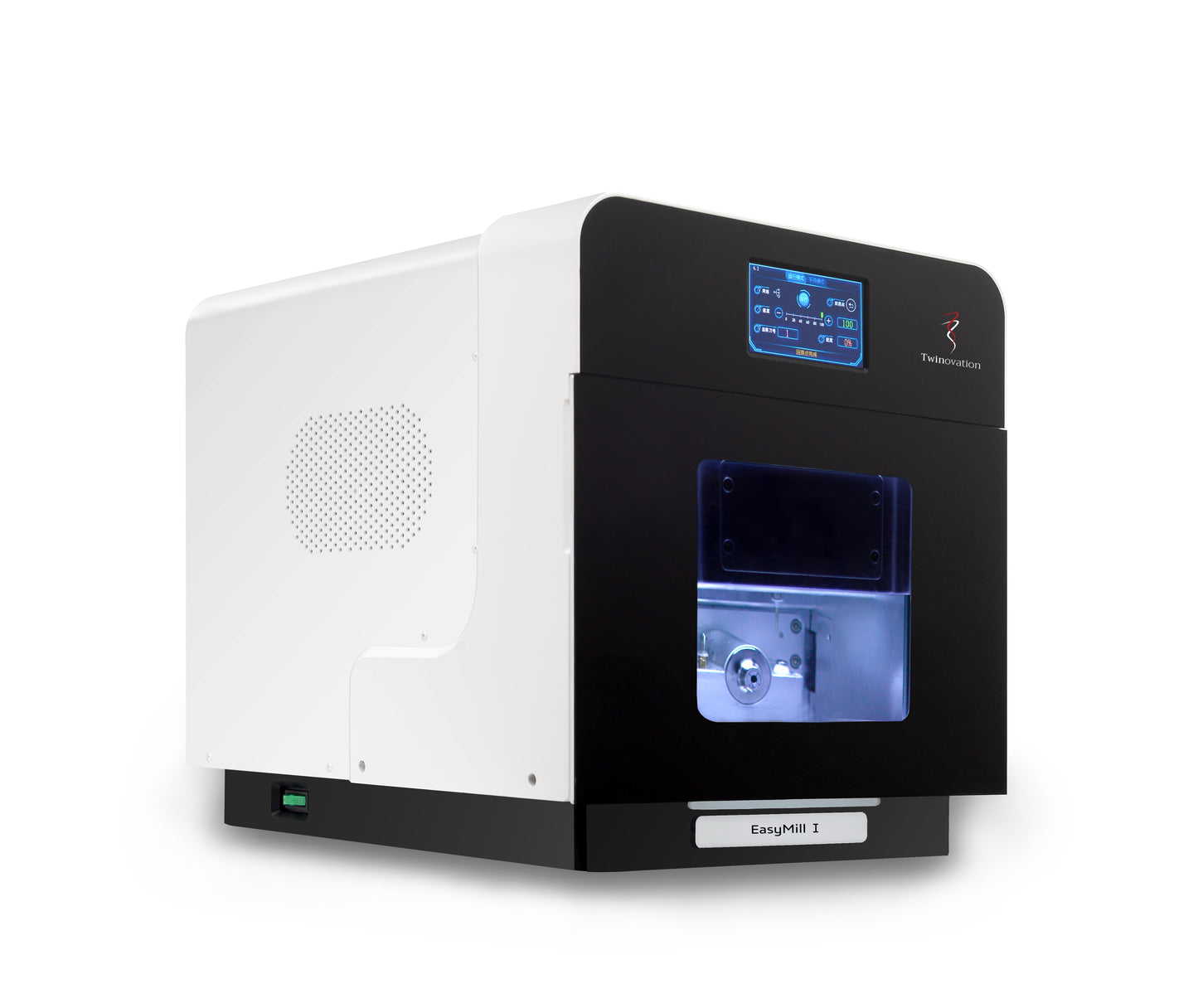

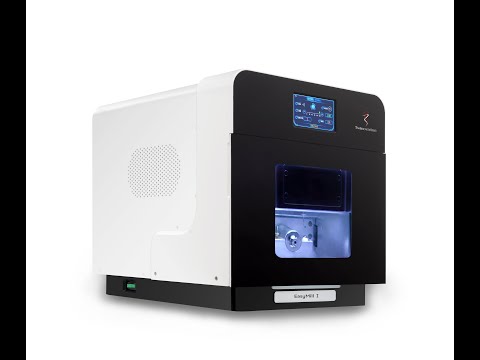

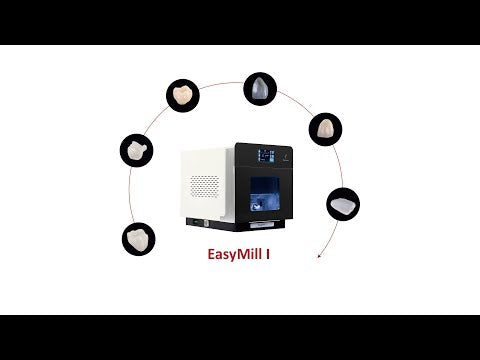

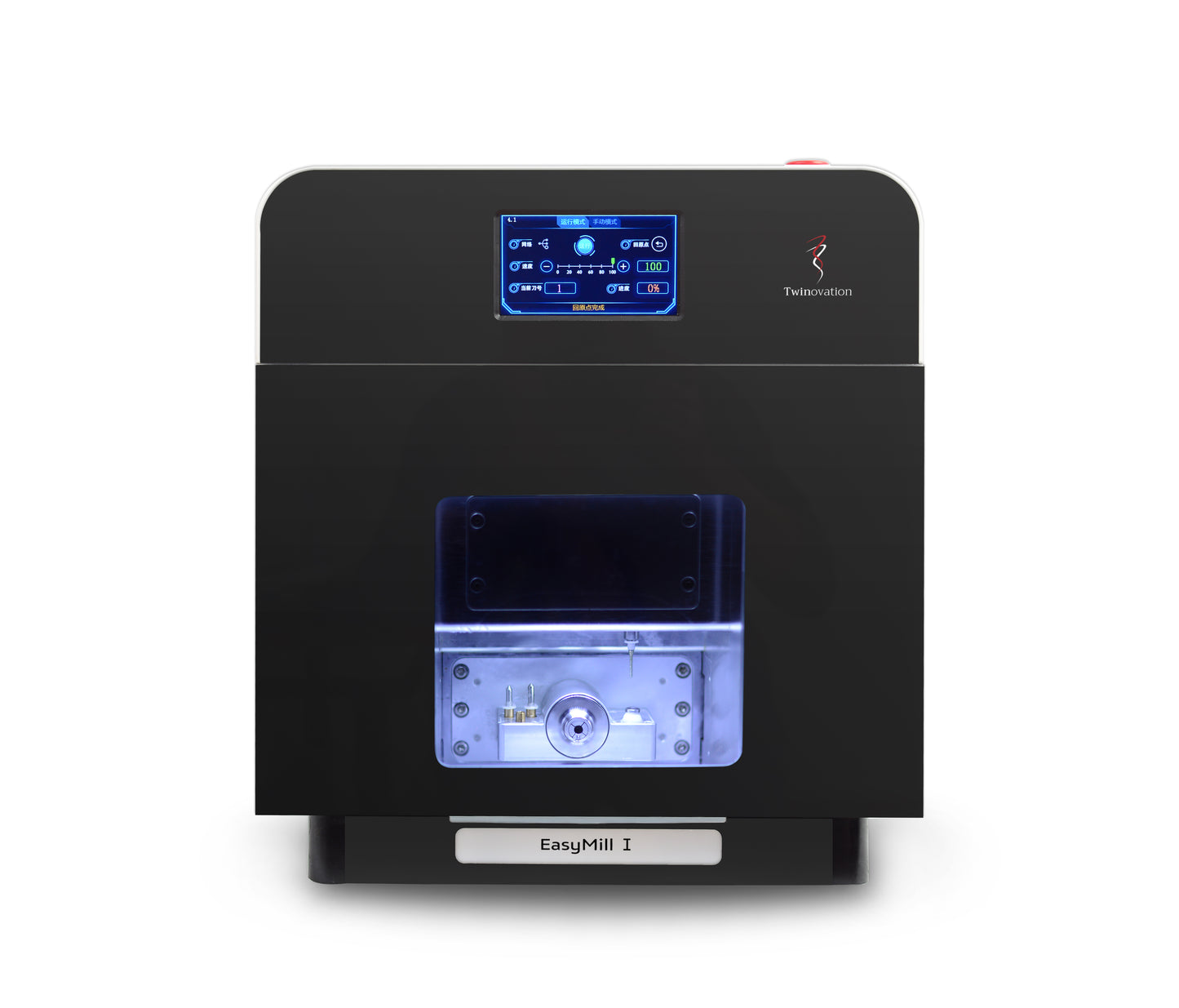

EasyMill I New Generation of All ceramic Digital Milling System
EasyMill I New Generation of All ceramic Digital Milling System
EasyMill I is a compact milling system which just needs 4 bar of pressure. It’s user-friendly and easy-to-maintain, a perfect design of CAD/CAM blocks milling system for chairside and dental lab processing.
Accommodate for wide variety of CAD/CAM materials:
- feldspar glass ceramics
- lithium-based ceramics
- hybrid materials and PMMA
- Inlay, onlay, facing, crown, and temporary crown PMMA up to 3 to 4 units
9 Characteristics
1. Compactness
Save space and easily moveable
2. High Precision and Efficiency
It takes15-30 minutes to complete a single restoration in with precision of 20 μm
3. Patented Pneumatically-Powered Block Changing
Need no tools, such as a wrench
4. Accurate Screw Hole
Directly mill the screw hole on the implant restorations (optional function)

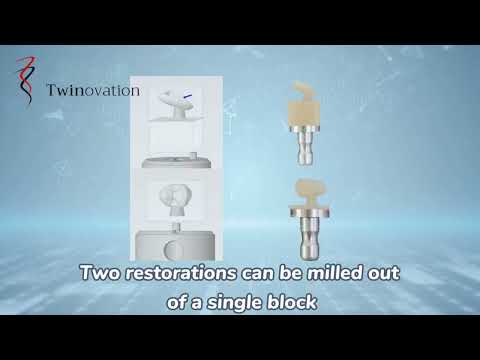

5. Mill Two Restorations from a Single Ceramic Block
Reduce the costs of materials
6. Automatic Tool Changing and Tool Monitoring
Return the burs with one click to minimize the possibility of collision
7. Simple Operation and Easy to Maintain
The separate filtered water cooler needs no additional filters
8. Open System
Compatable with standard STL data for layout setting and milling
9. Equiped with minimal 0.5mm bur
A good balance of precision & durability, each set of burs can mill up to 20 blocks of restorations
Technical Data
|
Name: |
Twinovation EasyMill I |
Spindle speed: |
1,000-60,000 RPM |
|
Type： |
Water-cooled desktop |
Tool changing model： |
Pneumatically-powered automatic tool changing |
|
Material range: |
Feldspar-type ceramics; lithium based ceramics; hybrid materials; PMMA |
Block changing model: |
Pneumatically-powered button, no tools is required |
|
|
Burs in magazine：3 burs |
||
|
Applicable to: |
Inlays and onlays; veneer; coping; crown |
Bur size: |
4mm diameter |
|
Operation temperature range: |
20~40°C |
Diameter of the bur head: |
0.5 + 1.0 + 2.0 |
|
Productivity: |
15~30 minus per block |
Voltage： |
220V, 50/60HZ |
|
X*Y*Z traveling distance：55 x 50 x 45 ( mm) |
Power: |
M1.2KVA for the machine |
|
|
|
X. Y.Z.A semi closed loop drive system; |
Weight： |
40KG |
|
|
Stepper motor with encoder + ball screw with pretension |
Noise: |
~50dB under operation |
|
Repositioning precision: |
0.001mm |
Size： |
370x470x410 (mm) |
|
Power of spindle: |
400W |
Pneumatically-powered pressure for tool & block changing:4.5~8.5kg/cm2, dry |
|
